Micropile STATIpile

STATIpile micropiles are punched micropiles of spiral shape made from aluminium alloy.

Micropile shape - the spiral shape provides many times larger friction area than an ordinary tube-type micropile. When installed by ramming, it is gradually screwed in and compresses (compacts) the adjacent soil. Spiral shape of wings provides support forces in all directions. The load induced, whether in pressure or tension, is distributed evenly over the total pile length.

STATIpile helical micro-pile



Use of STATIpile micropiles

Increasing load capacity of partially collapsed foundations

STATIpile was initially developed for light repairs of foundation structures with disturbed static and difficult access. In combination with helical supports, the whole system is suitable for complete repairs of buildings with faulty foundation structures and cracked masonry walls. The repair is very quick, restricts the use of the building in the course of repair works to the minimum extent, and it is affordable.

Fixing additional foundation setting

In foundations, STATIpile micropiles may also be used to increase the load capacity of the foundation in case of various extensions and load changes to original foundations.

New foundations for steel structures

STATIpile micropiles may also be applied to support the tensile force. This characteristic can be used for stabilization of support walls, river banks, and where we may anticipate tensile phase effect (textile structures, cranes, telephone towers for GSM signal). It may also be used for foundation structures of new buildings in unfavourable places or under unfavourable foundation conditions.

Frequently Asked Questions

What is micropile?

A micropile (also known as a micro pile) is a small-diameter pile that is used to transfer load from a structure to deeper soil or rock layers with a high bearing capacity. Micropiles are typically made of high-strength steel or composite materials, and they are installed using specialized drilling equipment.

Why micro piles are used?

Micropiles are used in a variety of construction applications, including foundation repair, slope stabilization, and bridge rehabilitation. They are often used when traditional pile foundations are not feasible or when the soil conditions are not suitable for other types of piles. Micropiles are also used in cases where the loads on the structure are relatively light, as they can provide a cost-effective alternative to larger piles.

How does micro piling work?

The installation of micro piles typically involves drilling a hole to the desired depth, placing the micro pile into the hole, and grouting it in place. The load-bearing capacity of the micro pile is determined by the size and strength of the pile material, as well as the soil conditions and the design load.

What is the difference between bored pile and micropile?

The main difference between a bored pile and a micropile is the size of the pile. Bored piles are typically larger in diameter than micropiles and are used to transfer larger loads. They are typically installed using a bored pile rig, which removes soil from the ground using a drilling tool and then replaces it with concrete or another load-bearing material. Micropiles, on the other hand, are installed using smaller, specialized drilling equipment and are used to transfer smaller loads.

Micropiles parameters

Typ r 60 mm STATIpile r 100 mm STATIpile
Length 1 m 1 m
Material Legierung AlSi7Mg0,3 Legierung AlSi7Mg0,3
Screw thread M12 M20
Standard DIN975 DIN975

Reinforcement of the base using a micropile STATIpile

      r 60 mm STATIpile r 100 mm STATIpile
Ground Class SPT Tensile force (kN) Pressure (kN) Tensile force (kN) Pressure (kN)
Dirt with medium plasticity F5 0 - 5 5 8 7 10
Clay with high plasticity F7 1 - 4 7 10 10 - 20 15 - 25
Clay with medium plasticity F6 4 - 8 10 - 15 15 - 20 25 - 35 30 - 40
Clay with low plasticity F6 8 - 20 25 - 30 30 - 40 40 - 60 70 - 90
Sandy clay F4 1 - 4 7 15 - 20 12 - 15 15 - 20
Gravel with soil admixture G3 20 - 40 10 - 20 30 - 40 15 - 30 40 - 60
Gravel with good grain size G1 30 - 50 30 - 40 30 - 40 20 - 60 150
Clay 50 + 50 50 150 150
Silty clay 20 + 50 50 150 150
Piles leaning in the rock massif 50 + 50 50 150 150

Realized projects

Sort By: Direction:
  • Riga Domus – Latvia

    Saving the gable masonry of the dome in Riga from restoration work. Insight into History of Riga Cathedral. Wikipedi...

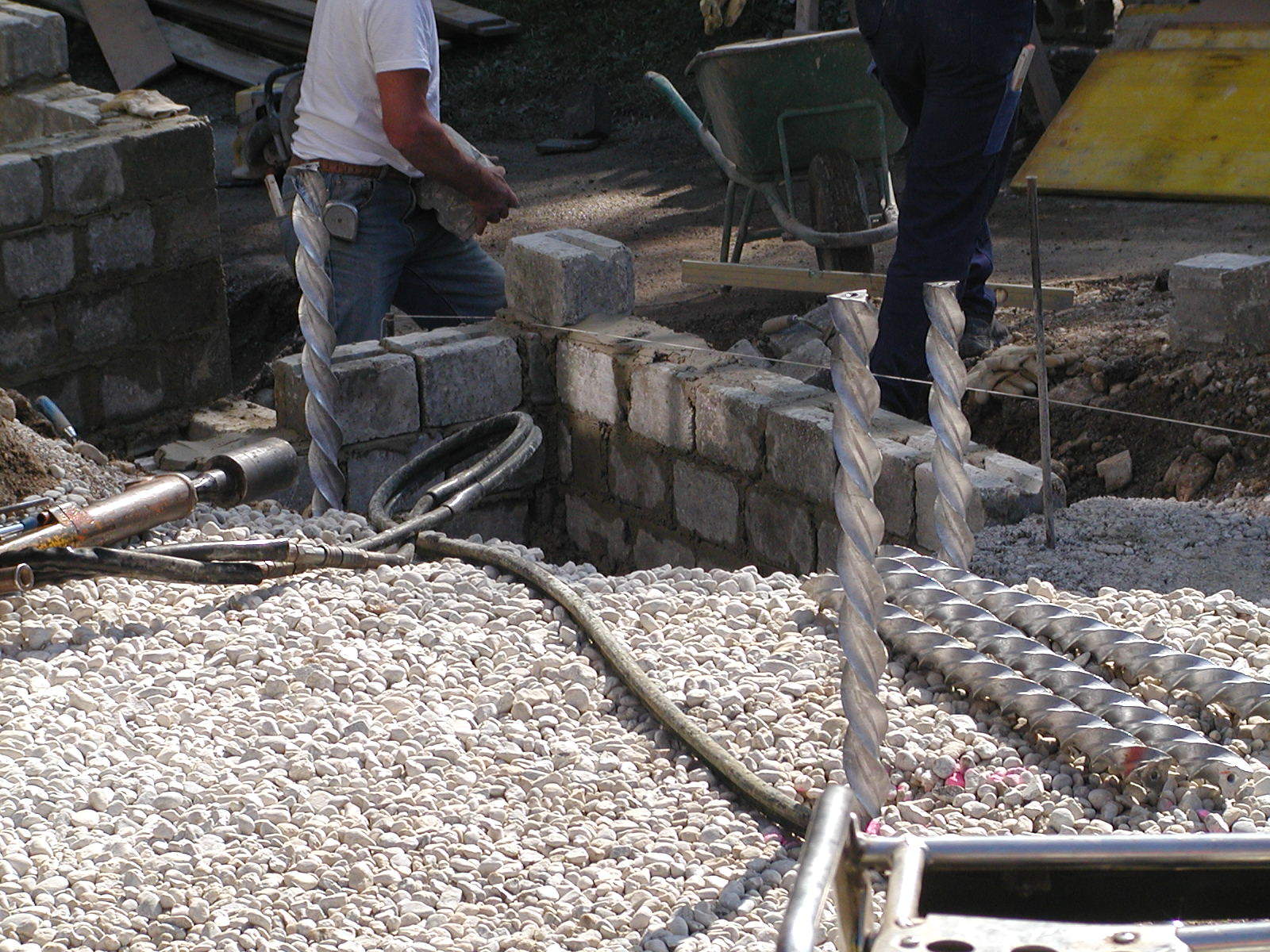

  • Gmunden Rakousko

    Gmunden Austria

    Basics for the extension of a family house in Austria....
  • Karlstejn Castle Czech Republic

    Core borehole for conducting electrical installations inside walls 17m long....
  • Vyšehrad Czech Republic

    Execution of static securing of the crack of the Old Burgrave’s Office above the Vltava. Climbing applied heli...
  • zámek Náchod

    Castle Náchod

    The foundation joint on the buttress of the castle in Náchod has shifted. In order to prevent further shifts, holes ...

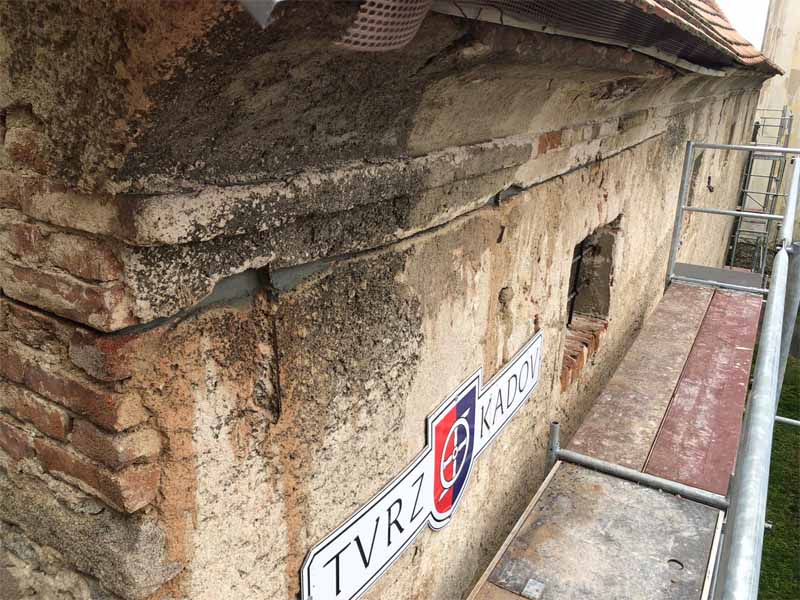

  • tvrz kadov
